Maximize your spray coverage and operational efficiency with the Ag Spray BXT3438 Series 3-Section Boomless Boom, engineered for precision and versatility in a wide range of agricultural and roadside applications. With a total effective coverage of up to 34 feet, this boomless sprayer system is ideal for treating pastures, rangelands, roadways, and right-of-ways with minimal passes.

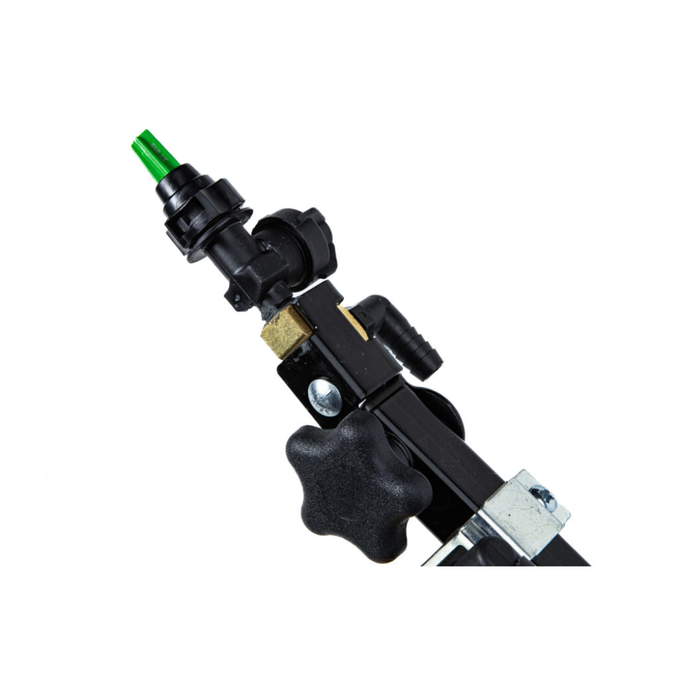

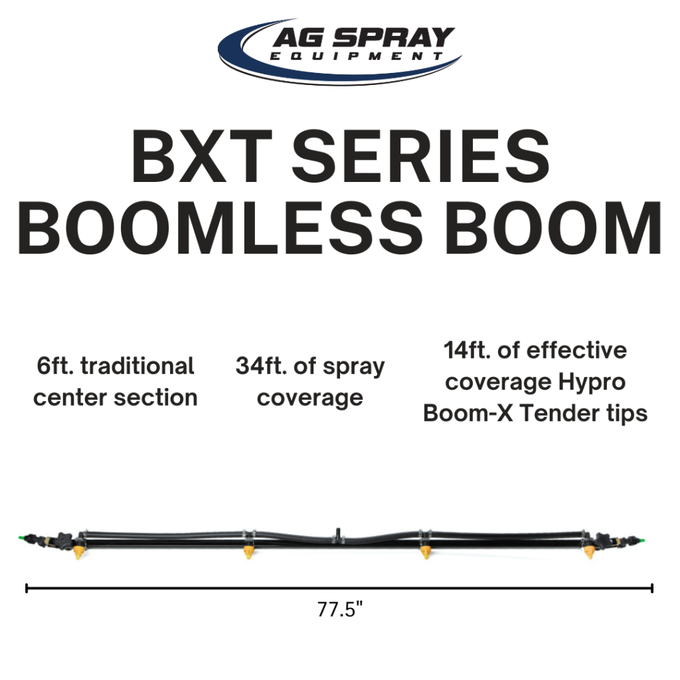

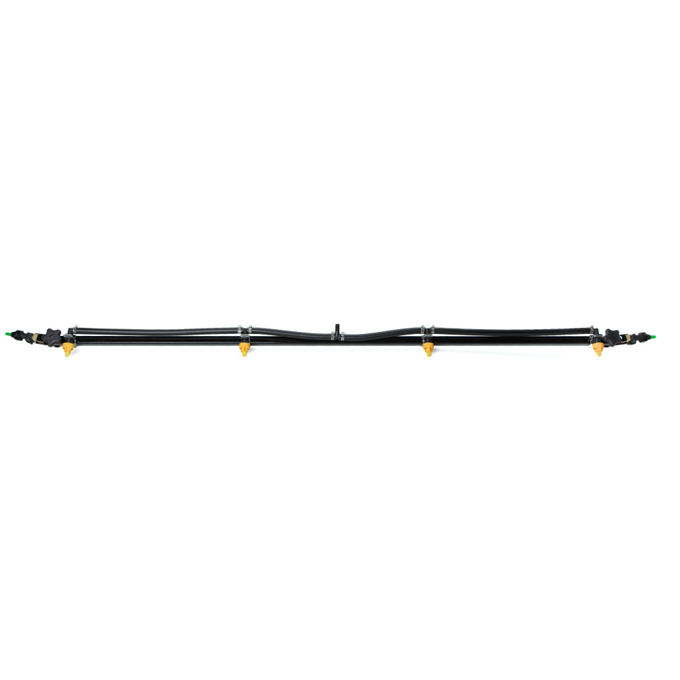

The BXT3438 includes a 6-foot traditional center spray section, flanked by 14-foot Boom Extender Tips (BXT) on each side. These BXT arms are mounted on adjustable swivel brackets that rotate 180° for targeted application control and allow for directional spraying based on terrain or application needs.

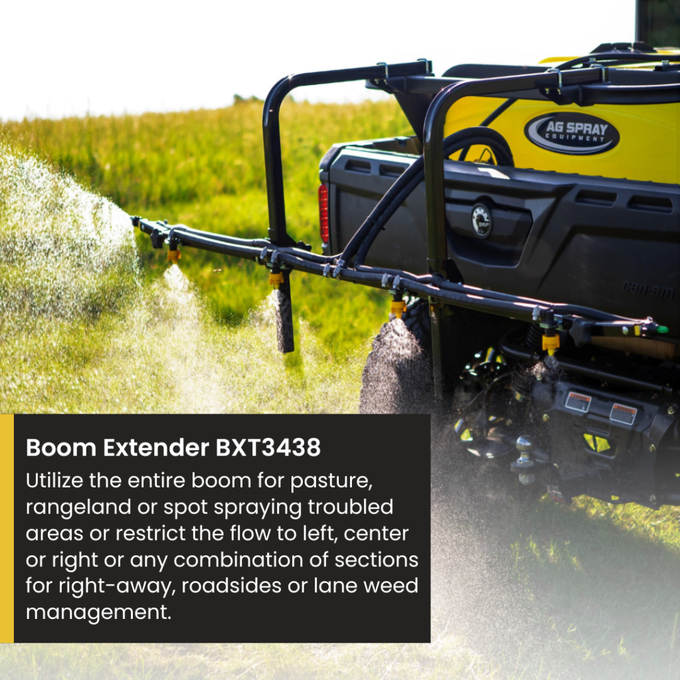

A detent button acts as a locating stop at 5° above horizontal, simplifying nozzle realignment and ensuring repeatable, optimized spray angles after each use. Designed for use at 40 PSI with 3.8 GPM flow, the system supports full or independent section control—choose left, center, right, or any combination for custom spraying along roadsides, lanes, or uneven fields.

Key Features:

• 34’ Effective Spray Coverage – Complete wide-area spraying in fewer passes
• 3-Section Control – Operate left, center, or right spray zones independently
• Adjustable Swivel Brackets – 180° rotation for directional spray targeting
• Nozzle Resetting Made Easy – Detent stop at 5° takes out guesswork
• Low Maintenance, High Efficiency – Built for pasture, rangeland & roadside use
• Flow Requirement: 3.8 GPM @ 40 PSI
• Durable Construction – Built to last through rugged terrain and tough jobs

Whether you’re spot spraying problem areas or maintaining large open fields, the Ag Spray BXT3438 Boomless Boom delivers professional results, broad coverage, and unbeatable flexibility.
