Name: PTO Link® Compact System – Duo Bundle | Quick Connect for Category 1 Tractors & Implements
Availability: InStock

PTO Link® HD Replacement Locking Pin | Spring‑Loaded Steel Pin for Heavy‑Duty PTO System

$29.99

Shop Now

PTO Link® Compact System – Duo Bundle | Quick Connect for Category 1 Tractors & Implements

Description
Features & Key Specs

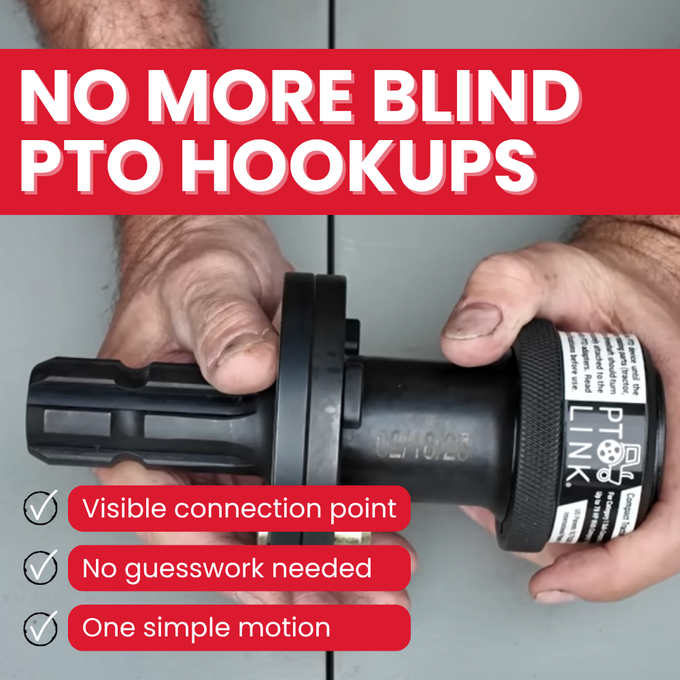

The PTO Link® Compact System is designed for ONLY category 1 tractors (compact or subcompact, with a max 70 HP/engine net rating), used in combination with category 1 implements ONLY. PTO Link® is the original, universal PTO quick-connect system consisting of two interconnecting steel couplers. Its patented Open-Plate design replaces the traditional spline-to-driveline connection with a visible interface that’s both easy to see and reach. Now you can quickly and safely connect/disconnect implements at the tractor’s PTO in just seconds! This complete PTO Link® System includes both a Tractor (Female) Coupler and an Implement (Male) Coupler. For best results, every tractor should be equipped with a Tractor Coupler, and every implement should be equipped with an Implement Coupler!

Choose from these complete bundles:

PTO Link® Compact System – Duo Bundle | Quick Connect for Category 1 Tractors & Implements - includes both a Tractor (Female) Coupler and one Implement (Male) Coupler

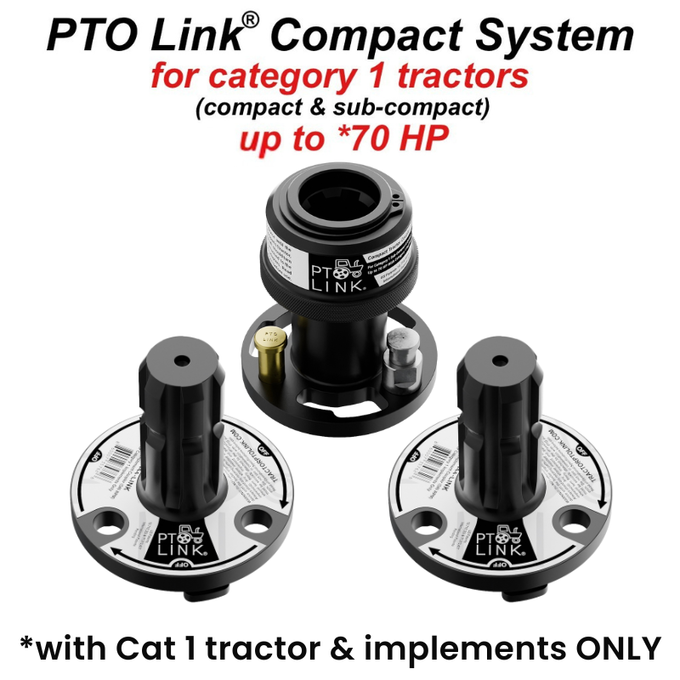

PTO Link® Compact System – Trio Bundle | Quick Connect for Category 1 Tractors & Implements - includes both a Tractor (Female) Coupler and two Implements (Male) Coupler

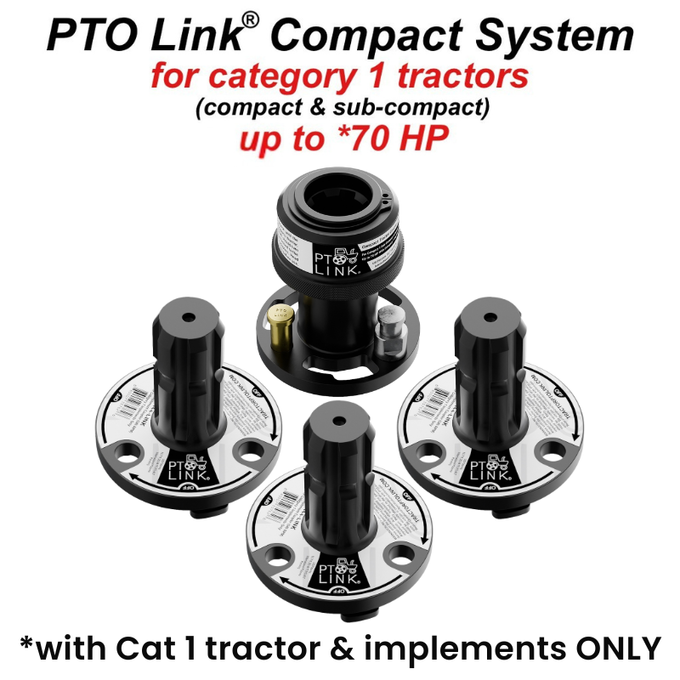

PTO Link® Compact System – Quad Bundle | Quick Connect for Category 1 Tractors & Implements - includes both a Tractor (Female) Coupler and three Implements (Male) Coupler

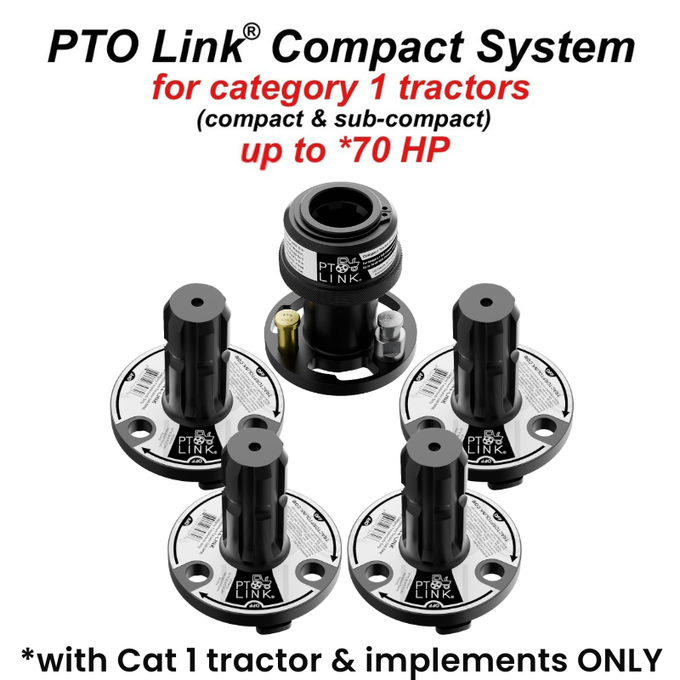

PTO Link® Compact System – Star Bundle | Quick Connect for Category 1 Tractors & Implements - includes both a Tractor (Female) Coupler and four Implements (Male) Coupler

NOTICE: All PTO Link Systems add 5 inches to your driveline.

Designed For:

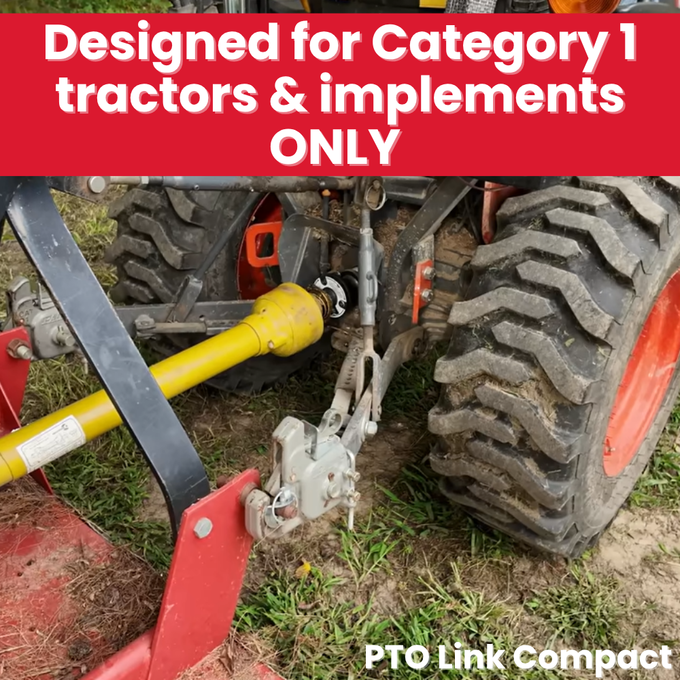

Rear 6-spline 540 RPM PTO for category 1 tractors & category 1 implements ONLY.
The required PTO Link® system for, but not limited to, the following tractor models:
- Kubota BX*, B & LX Series
- Coyote CS & DK Series (Cat 1)
- Yanmar SA Series
- John Deere 2520 (2005-2011)
- New Holland Workmaster 25S
- Cub Cadet 6284D
- Bad Boy 3026
- LS MT122, MT125 & MT225
- Mahindra 1526, 1626, & 2126
- Massey Ferguson 25, 1010, 1020, 1030 & 1035

*NOTICE for Kubota BX tractors ONLY! The specially designed PTO Link® Compact System - Lift Arm Stabilizer Replacement Plate is an additional requirement for all BX series tractors.

SKU:

Product Features:

PTO Link® Compact System - Safety Bolt included with every Tractor Coupler – Extras can be purchased separately.
Simple one-step installation and easy removal for each Coupler without special hardware or installation tools.
Built to last (Modified AISI 4140 hardened alloy steel with QPQ finish)
Limited warranty covers all manufacturing defects in materials or workmanship of all PTO Link® parts for one year from the date of purchase.
US Patents 10,718,383 & 11,313,417
International Patents Pending
Tractor Coupler Dimensions: 3.75” W x 4.25” H; Implement Coupler Dimensions: 3.75” W x 4.0625” H
Tractor Coupler Weight: 3.8 lbs; Shipping weight: 4 lbs; Implement Coupler Weight: 2.8 lbs; Shipping weight: 3 lbs.

Safety and Operation:

The PTO Link® System adds approximately 5 inches to the overall length of the implement driveline when fully installed. To avoid any possible damage or injury requires carefully measuring the driveline length for possible adjustments and reviewing all installation instructions and operational specs before operating the PTO Link®.
The PTO Link® Compact System is NOT compatible or interchangeable with other PTO Link® systems due to the specific design of the connecting components for each system.
As an essential safety precaution, be sure to turn off the tractor’s engine during installation, shield any rotating parts, and do not wear any loose clothing that could become entangled and pulled into the machine. PTO safety is critical, and every precaution should be taken.
The PTO Link® system is NOT an adapter. To comply with ASABE standards, do not use PTO Link® in combination with PTO adapters.

PTO Link® HD System for all tractors rated from 35 HP to 130 HP (engine net) with Category 1 or 2 or pull-behind implements.

Choose from these complete bundles:

PTO Link® Compact System – Duo Bundle | Quick Connect for Category 1 Tractors & Implements - includes both a Tractor (Female) Coupler and one Implement (Male) Coupler
PTO Link® Compact System – Trio Bundle | Quick Connect for Category 1 Tractors & Implements - includes both a Tractor (Female) Coupler and two Implements (Male) Coupler
PTO Link® Compact System – Quad Bundle | Quick Connect for Category 1 Tractors & Implements - includes both a Tractor (Female) Coupler and three Implements (Male) Coupler
PTO Link® Compact System – Star Bundle | Quick Connect for Category 1 Tractors & Implements - includes both a Tractor (Female) Coupler and four Implements (Male) Coupler

NOTICE: All PTO Link Systems add 5 inches to your driveline.

Designed For:

Rear 6-spline 540 RPM PTO for category 1 tractors & category 1 implements ONLY.
The required PTO Link® system for, but not limited to, the following tractor models:
- Kubota BX*, B & LX Series
- Coyote CS & DK Series (Cat 1)
- Yanmar SA Series
- John Deere 2520 (2005-2011)
- New Holland Workmaster 25S
- Cub Cadet 6284D
- Bad Boy 3026
- LS MT122, MT125 & MT225
- Mahindra 1526, 1626, & 2126
- Massey Ferguson 25, 1010, 1020, 1030 & 1035

*NOTICE for Kubota BX tractors ONLY! The specially designed PTO Link® Compact System - Lift Arm Stabilizer Replacement Plate is an additional requirement for all BX series tractors.

SKU:

Product Features:

PTO Link® Compact System - Safety Bolt included with every Tractor Coupler – Extras can be purchased separately.
Simple one-step installation and easy removal for each Coupler without special hardware or installation tools.
Built to last (Modified AISI 4140 hardened alloy steel with QPQ finish)
Limited warranty covers all manufacturing defects in materials or workmanship of all PTO Link® parts for one year from the date of purchase.
US Patents 10,718,383 & 11,313,417
International Patents Pending
Tractor Coupler Dimensions: 3.75” W x 4.25” H; Implement Coupler Dimensions: 3.75” W x 4.0625” H
Tractor Coupler Weight: 3.8 lbs; Shipping weight: 4 lbs; Implement Coupler Weight: 2.8 lbs; Shipping weight: 3 lbs.

Safety and Operation:

The PTO Link® System adds approximately 5 inches to the overall length of the implement driveline when fully installed. To avoid any possible damage or injury requires carefully measuring the driveline length for possible adjustments and reviewing all installation instructions and operational specs before operating the PTO Link®.
The PTO Link® Compact System is NOT compatible or interchangeable with other PTO Link® systems due to the specific design of the connecting components for each system.
As an essential safety precaution, be sure to turn off the tractor’s engine during installation, shield any rotating parts, and do not wear any loose clothing that could become entangled and pulled into the machine. PTO safety is critical, and every precaution should be taken.
The PTO Link® system is NOT an adapter. To comply with ASABE standards, do not use PTO Link® in combination with PTO adapters.

PTO Link® HD System for all tractors rated from 35 HP to 130 HP (engine net) with Category 1 or 2 or pull-behind implements.

What To Know About PTO Link

Will PTO Link fit my tractor?

The Compact System fits Category 1 compact and subcompact tractors up to 70 HP with a rear 6-spline 540 RPM PTO — including Kubota BX, B & LX Series, John Deere 2520 (2005–2011), Yanmar SA Series, New Holland Workmaster 25S, Cub Cadet 6284D, Bad Boy 3026, LS MT122/MT125/MT225, Mahindra 1526/1626/2126, and Massey Ferguson 25, 1010, 1020, 1030 & 1035. The HD System covers tractors from 35 to 130 HP with Category 1 or 2 or pull-behind implements. Not sure which you need? Call 1-888-249-7412 with your tractor model.

Are the Compact and HD systems interchangeable?

No. The Compact and HD systems are not compatible with each other — couplers only pair within their own system. Pick the system that matches your tractor's horsepower and implement category, and stay with it across your implements.

Does PTO Link change my driveline?

Yes — every PTO Link system adds 5 inches to your driveline. Most implements have enough shaft travel to absorb it, but measure before you order if your setup is tight. And note: PTO Link is not an adapter, and to comply with ASABE standards it should never be combined with PTO adapters.

What are the different types of PTO links and how do they work?

PTO Link® is a universal PTO quick-connect system made up of two couplers — a Tractor (Female) Coupler and an Implement (Male) Coupler — that let you attach and detach implements without wrestling the driveline by hand. There are two main options: the HD System Bundle, built for tractors rated 35–130 HP with Category 1 or 2 or pull-behind implements, ideal for rough conditions or high-torque, heavy-duty equipment; and the Compact Bundle, designed for smaller Category 1 tractors up to 70 HP paired with Category 1 implements only. Both bundles are available now on Agzaga.com.

Where can I find reliable PTO shaft extensions and couplers?

For reliable PTO shaft extensions and couplers, look toward suppliers specializing in ag equipment parts, offering spline adapters, over-running clutches, and extension couplers built from durable steel for various tractor sizes. If you're after a quick-connect coupler rather than a traditional adapter, PTO Link on Agzaga.com offers a patented Open-Plate coupler system that replaces the traditional spline-to-driveline connection, letting you connect and disconnect implements at the PTO in seconds, with options covering compact tractors up to 130 HP models. Whichever route you choose, prioritize hardened steel construction and proper fit for your tractor's HP and spline configuration to ensure safe, long-lasting operation.

How can I choose the right PTO adapter for my tractor?

Choosing the right PTO adapter means matching splines, diameter, and power ratings between your tractor and implement: measure both shafts' spline count and diameter (e.g., 1-3/8" 6-spline vs. 1-1/8" 6-spline) and pick an adapter that converts one to the other, making sure its horsepower rating exceeds your tractor's PTO output—opting for heavy-duty, bolt-on designs over quick-attach pins for high-horsepower or heavy-load work. If you swap implements often, a product like PTO Link uses a patented quick-connect system that lets you attach an implement in seconds without tools, available for tractors up to 130 HP (though it's a connect system rather than a true adapter, so it shouldn't be combined with standard PTO adapters). For older tractors paired with modern rotary cutters, use an Over-Running Coupler to prevent implement inertia from pushing the tractor forward, and favor hardened steel construction and proper lubrication for durability. Let me know your tractor model and implement, and I can help pinpoint the exact size or system you need.
