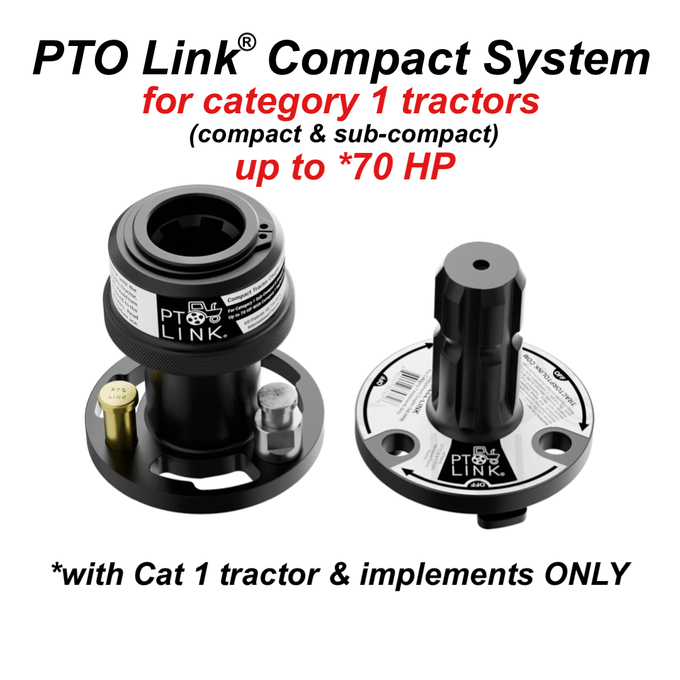

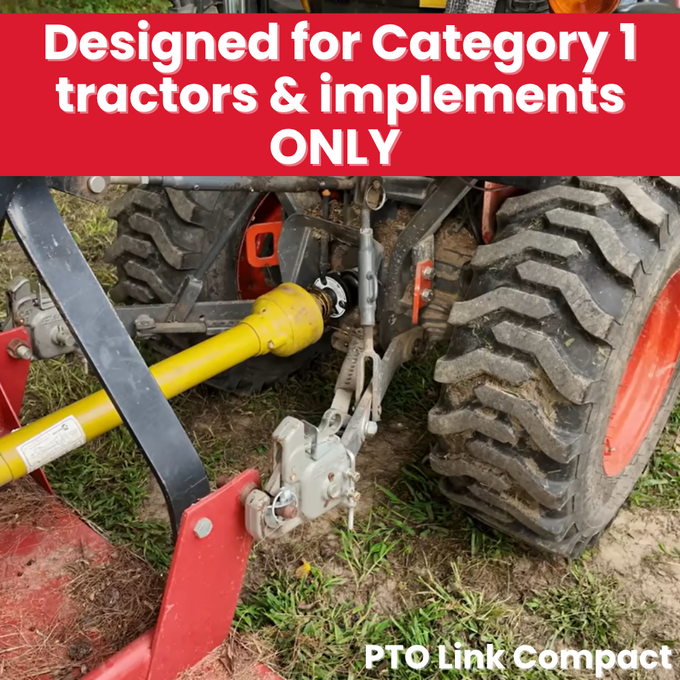

The PTO Link® Compact System is designed for ONLY category 1 tractors (compact or subcompact, with a max 70 HP/engine
net rating), used in combination with category 1 implements ONLY. PTO Link® is the original, universal PTO quick-connect system consisting of two interconnecting steel couplers. Its patented Open-Plate design replaces the traditional spline-to-

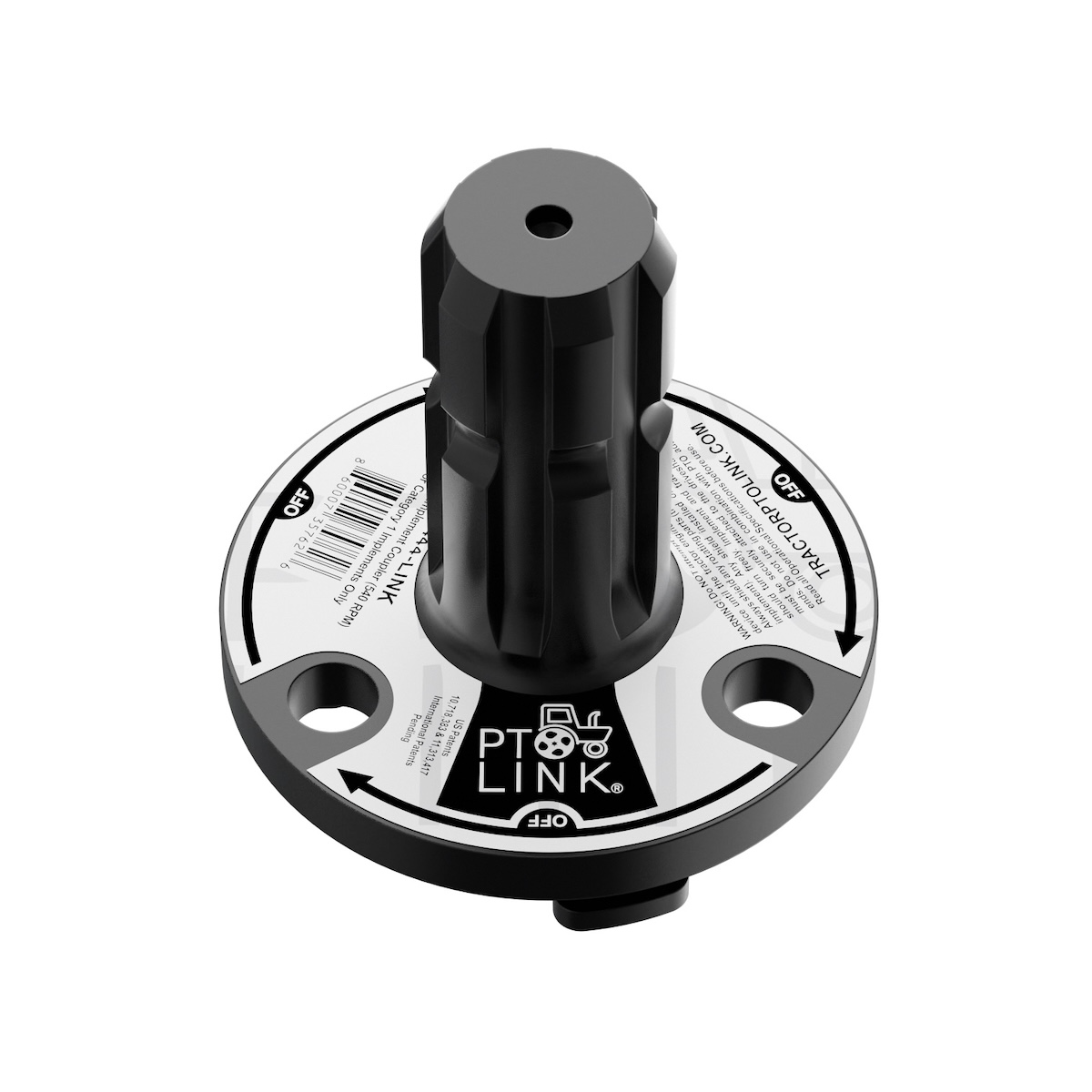

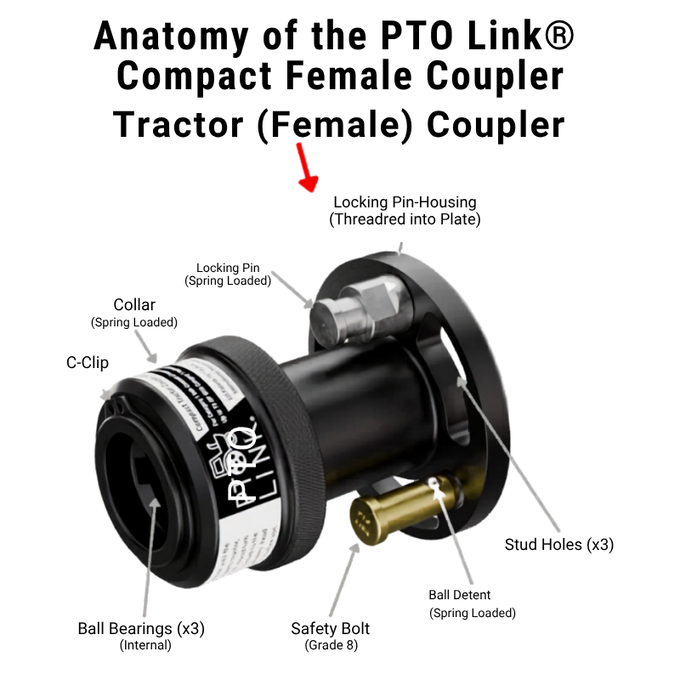

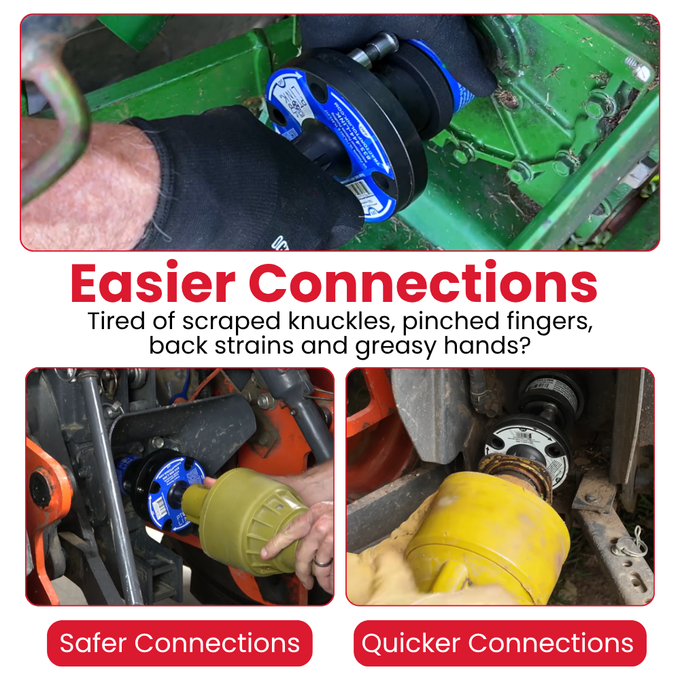

driveline connection with a visible interface that’s both easy to see and reach. Now you can quickly and safely connect/disconnect implements at the tractor’s PTO in just seconds! A complete PTO Link® System requires both this Tractor (Female) Coupler and an Implement (Male) Coupler. For best results, every tractor should be equipped with a Tractor Coupler, and every implement should be equipped with an Implement Coupler.

Designed For:

• Rear 6-spline 540 RPM PTO for category 1 tractors & category 1 implements ONLY.

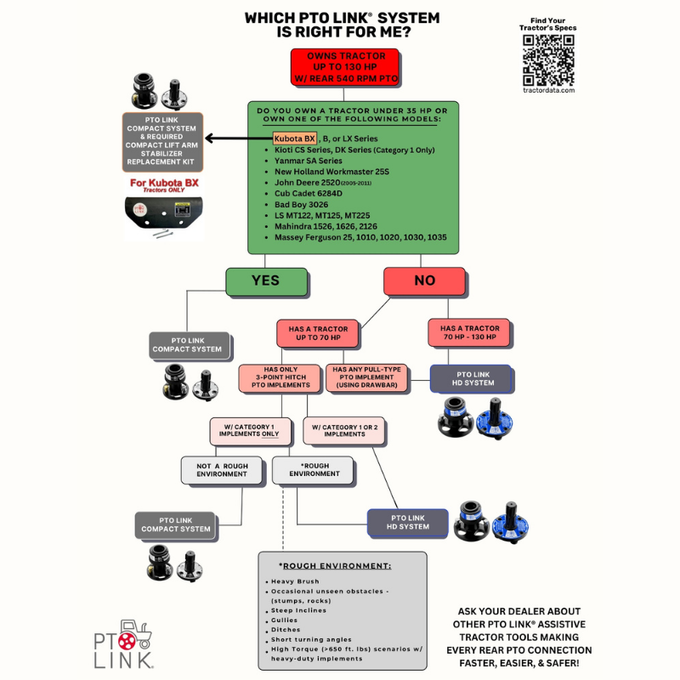

• The required PTO Link® system for, but not limited to, the following tractor models:
  • Kubota BX*, B & LX Series
  • KioL CS & DK Series (Cat 1)
  • Yanmar SA Series
  • John Deere 2520
  • New Holland Workmaster 25S
  • Cub Cadet 6284D
  • Bad Boy 3026
  • LS MT122 & MT125
  • Mahindra 1526 & 1626
  • Massey Ferguson 1010, 1020, 1030 & 1035

*NOTICE for Kubota BX tractors ONLY! The specially designed PTO Link® Compact System - Lift Arm Stabilizer
Replacement Plate is an additional requirement for all BX series tractors.

Product Features:

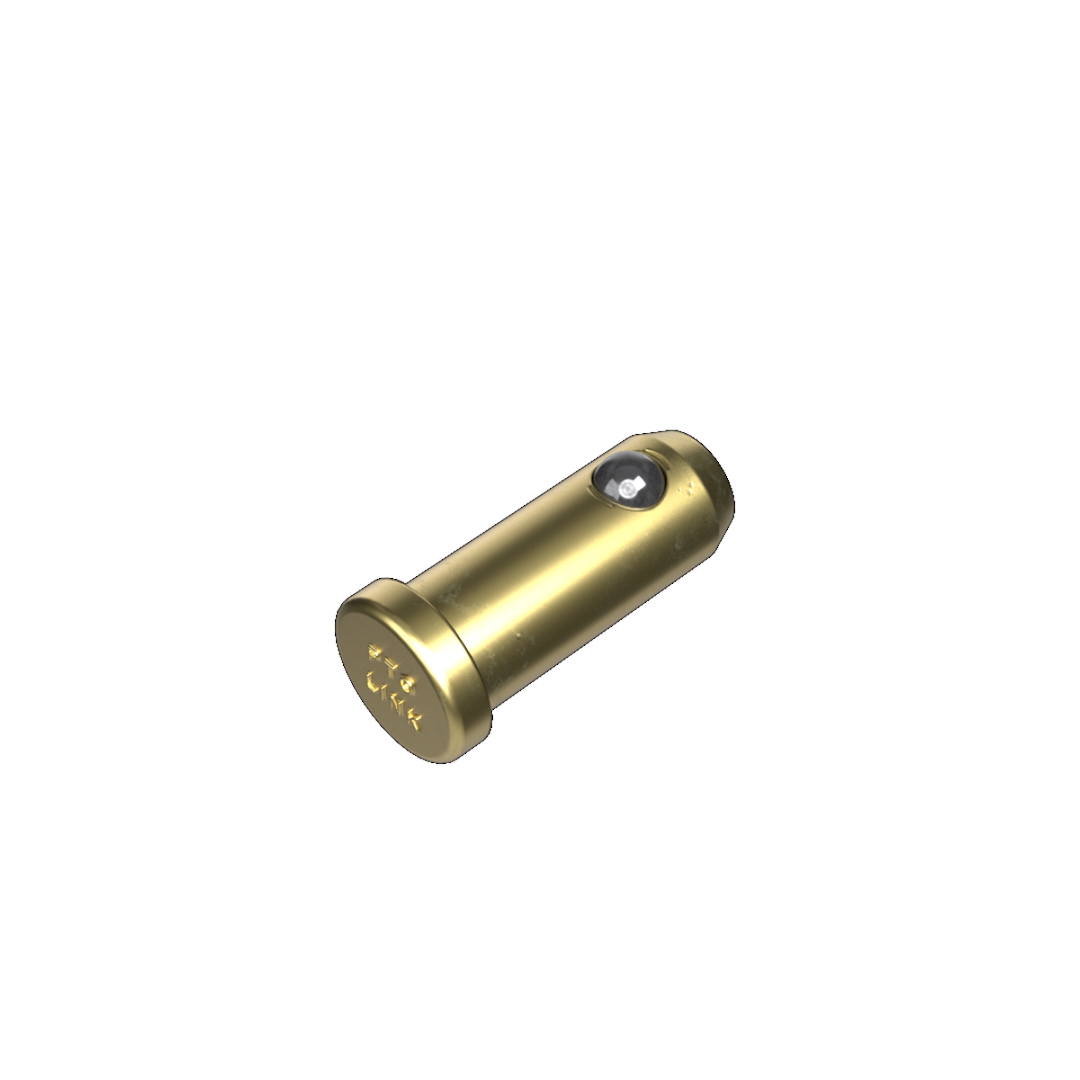

• PTO Link® Compact System - Safety Bolt included with every Tractor Coupler – Extras can be purchased separately.
• Simple one-step installation and easy removal for each Coupler without special hardware or installation tools.
• Built to last (Modified AISI 4140 hardened alloy steel with QPQ finish)
• Limited warranty covers all manufacturing defects in materials or workmanship of all PTO Link® parts for one year from the date of purchase.
• US Patents 10,718,383 & 11,313,417
• International Patents Pending
• Dimensions: 3.75” W x 4.25” H
• Weight: 3.8 lbs; Shipping weight: 4 lbs

Safety and Operation:

• The PTO Link® System adds approximately 5 inches to the overall length of the implement driveline when fully installed. To avoid any possible damage or injury requires carefully measuring the driveline length for possible adjustments and reviewing all installation instructions and operational specs before operating the PTO Link®.
• The PTO Link® Compact System is NOT compatible or interchangeable with other PTO Link® systems due to the specific design of the connecting components for each system.
• As an essential safety precaution, be sure to turn off the tractor’s engine during installation, shield any rotating parts, and do not wear any loose clothing that could become entangled and pulled into the machine. PTO safety is critical, and every precaution should be taken.
• The PTO Link® system is NOT an adapter. To comply with ASABE standards, do not use PTO Link® in combination with PTO adapters.

PTO Link® HD System for all tractors rated from 35 HP to 130 HP (engine net) with Category 1 or 2 or pull-behind implements.
