PTO Align Spanner Wrench | Heavy-Duty Implement Shaft Support for PTO Link® Systems

Description
Features & Key Specs

The PTO Align spanner wrench is designed to assist the alignment and rotation of most PTO implement shafts to tractors when connecting the driveline using the PTO Link® System. Because some tractors do not “freewheel” at the tractor’s PTO, in these cases, the alignment tool helps to leverage implements that need the extra ‘encouragement’ to rotate for PTO alignment, connection, or disconnection of some challenging implements (i.e., Flex-wing, flail, finish mowers, bailers, etc.).

*NOTICE: The PTO AlignTM Spanner Wrench (6-spline / 540 RPM) is compatible with the “New” PTO Link® Compact System, and PTO Link® SD and HD Systems.

**NOTICE: The PTO AlignTM Spanner Wrench (21-spline / sm1000 RPM) is compatible with the PTO Link® HD System (540 RPM Tractor side to sm1000 Implement side ONLY), or it can be used directly on any sm1000 RPM tractor spline (not intended to turn a non-freewheeling tractor PTO spline).

Another helpful compatible tool for connecting the PTO is the PTO Sling, which lifts and supports any heavy implement
shaft while coupling the shaft to the tractor’s PTO spline.

SKU: V0616.1845

Product Features

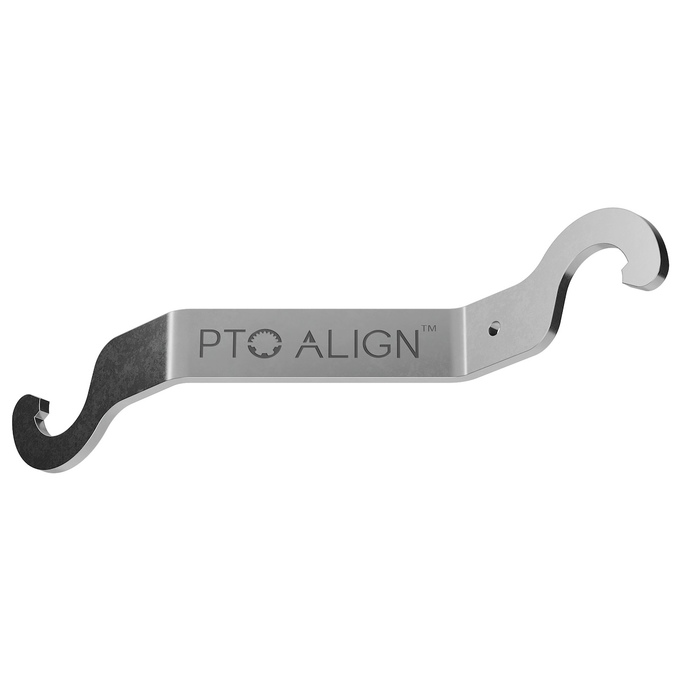

The PTO AlignTM spanner wrench is made of high-quality forged steel. It can be used as a leverage tool for rotating the PTO shaft with or *without the PTO Link® system in place. *NOTE: If used directly on the tractor’s PTO, it is NOT intended to turn a NON-Freewheeling PTO.
The Wrench works most effectively when used in combination with the PTO Link® System.

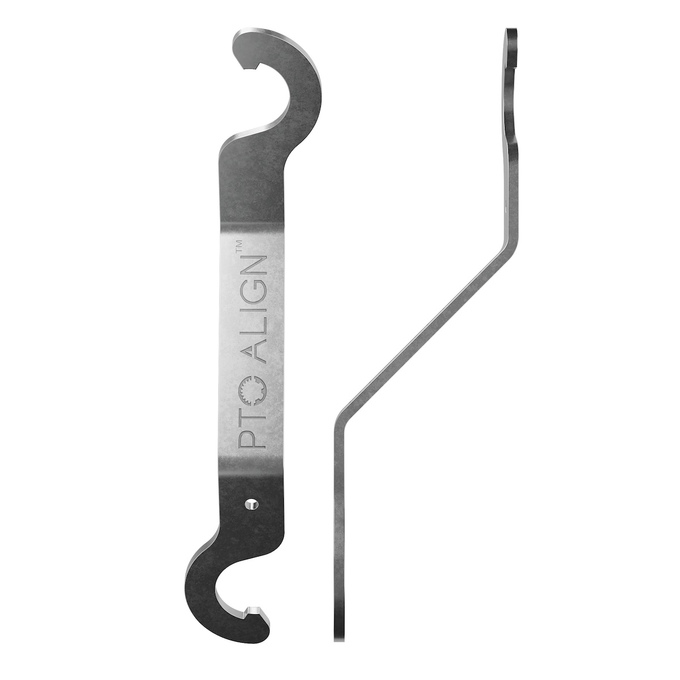

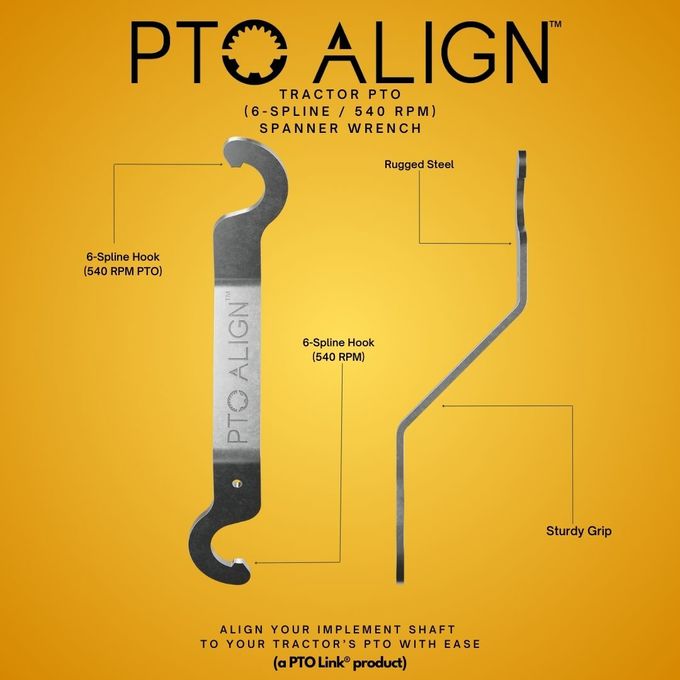

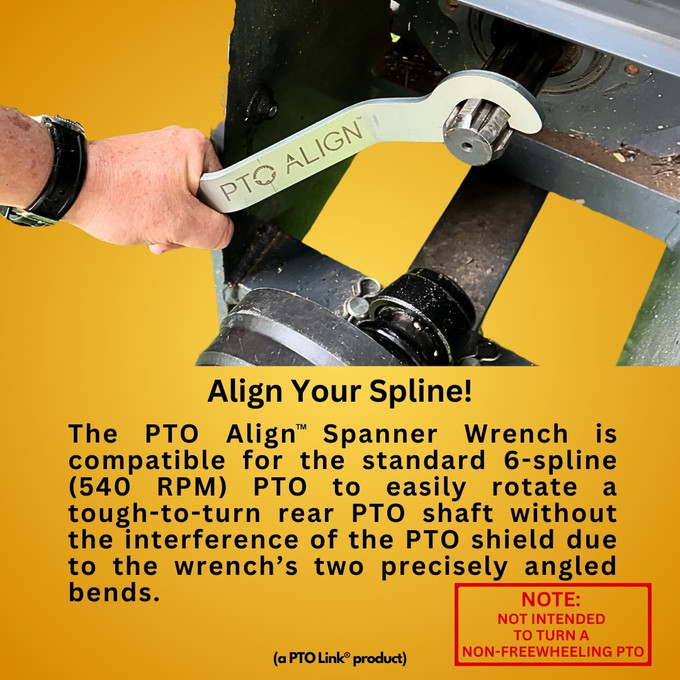

The unique offset angle of the Wrench allows easier access under most PTO shields to either rotate the PTO spline (as long as tractor’s PTO ‘freewheels/spins’) or the implement coupler’s spline of the PTO Link® System.

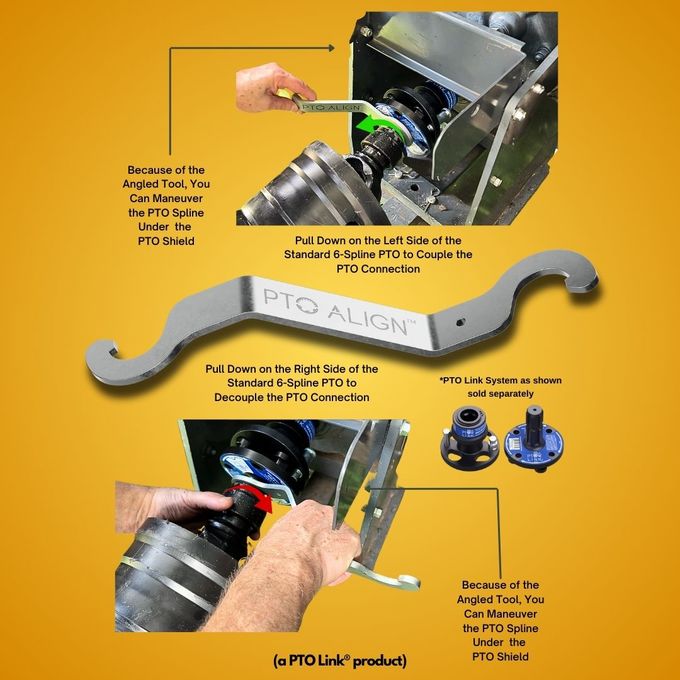

The wrench is typically placed onto the splines in the space between the end of the implement female receiver of the driveline and the installed PTO Link® coupler where the splines are visible.
If the tractor spline has the PTO Link® Tractor (Female) Coupler already installed, the tractor side coupler can be turned by hand in most cases without getting grease on your hands. Rotation of the implement side is where the PTO AlignTM Wrench really shines...whenever that extra leverage is needed.
Patents Pending
Dimensions: 12.375ʺ (L) x 2.5ʺ (W) x 0.25ʺ (D)
Weight: 13.8 oz

Safety and Operation:

As an important safety precaution, be sure to turn OFF the tractor’s engine during the use of this tool, and do NOT attempt to use the tool with any parts of the PTO or driveline that may be rotating.
Do not wear any loose clothing that could become entangled and pulled into the machine. PTO safety is extremely important, and every precaution should be taken.
