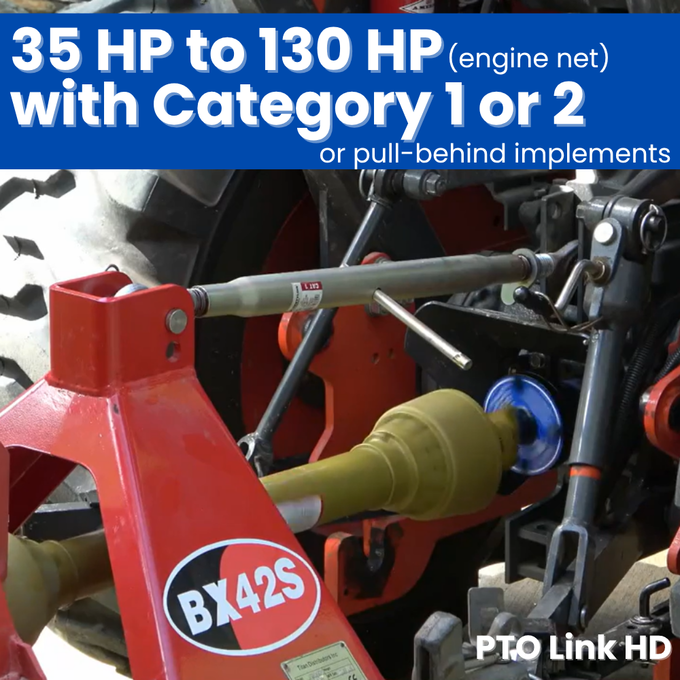

The PTO Link®HD System is designed for all tractors rated from 35 HP to 130 HP (engine net) with Category 1 or 2 or
pull-behind implements. PTO Link® is the original, universal PTO quick-connect system consisting of two interconnecting

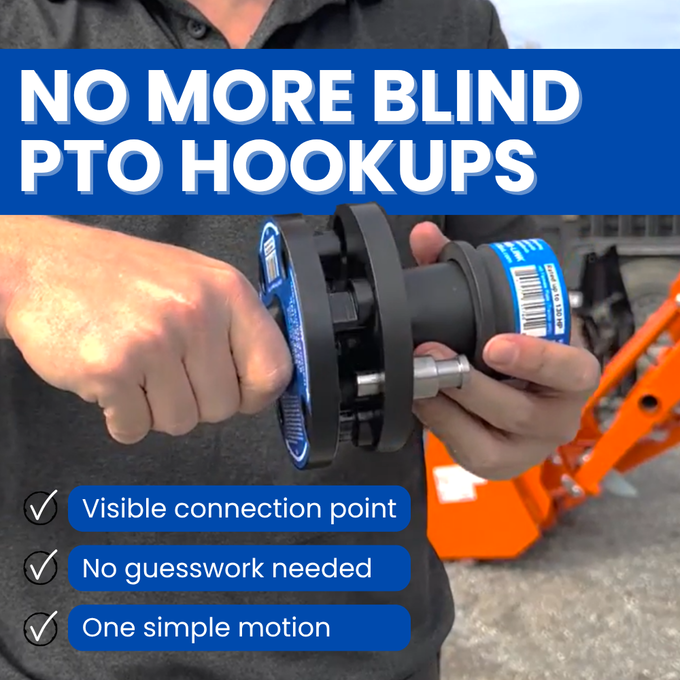

steel couplers. Its patented Open-Plate design replaces the traditional spline-to-driveline connection with a visible

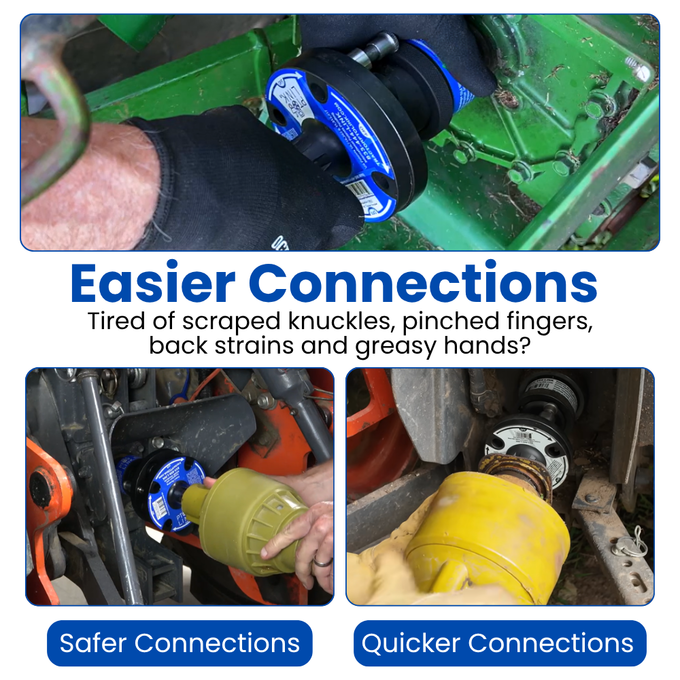

interface that’s both easy to see and reach. Now you can quickly and safely connect / disconnect implements at the

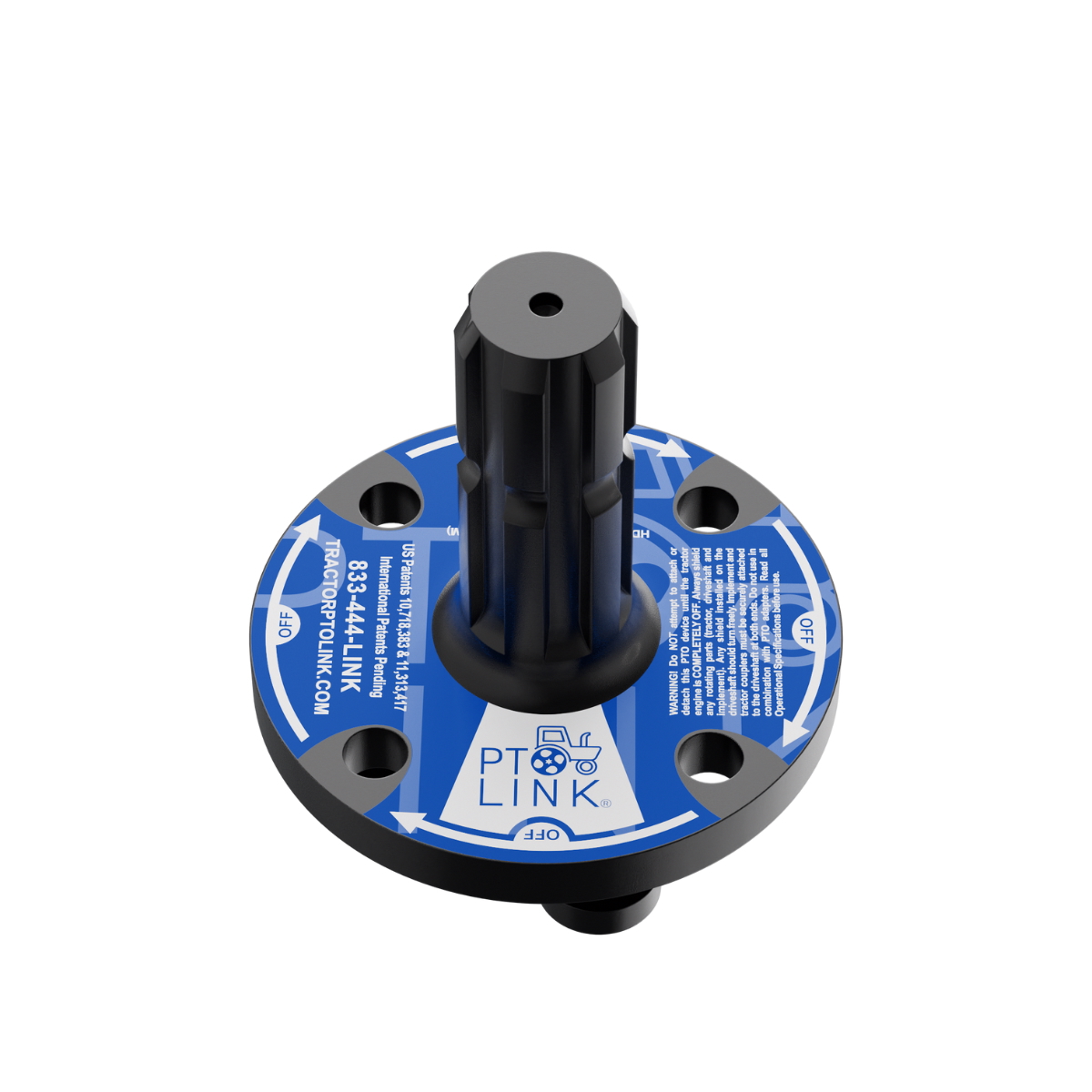

tractor’s PTO in just seconds! A complete PTO Link® System requires both this Tractor (Female) Coupler and an
Implement (Male) Coupler. For best results, every tractor should be equipped with a Tractor Coupler, and every
implement should be equipped with an Implement Coupler.

Designed For:

• Rear 6-spline 540 RPM PTO for tractors rated from 35 HP to 130 HP (engine net).
• All Category 1 or 2 implements with a three-point hitch.
• Pull-behind implements, including flex-wing rotary cutters (subject to implement operating manual specifications and guidelines).
• Tractor owners who tend to operate equipment in a rough environment.
• High Torque (> 650 ft. lbs.) scenarios or with heavy-duty implements (e.g., stump grinders, balers, augers, flail mowers, water pumps, large tillers) where reverse torque is common.

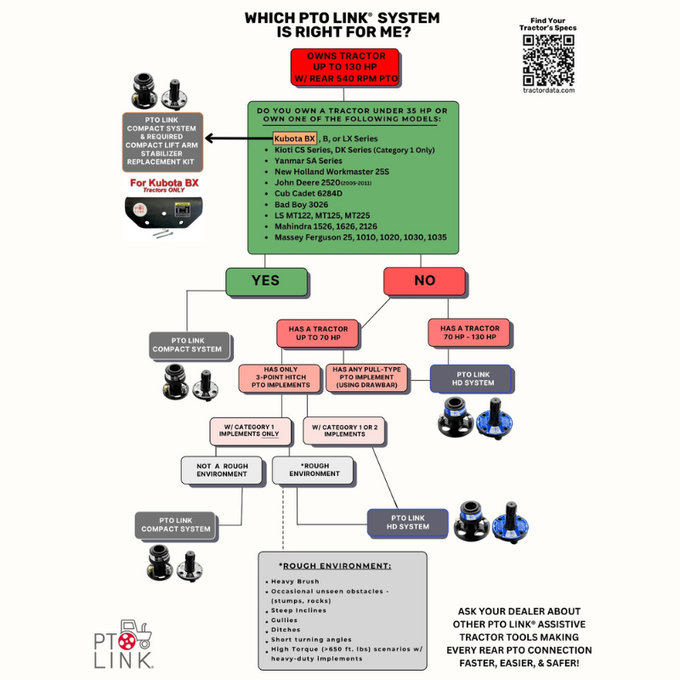

• *Exception Model: The Kioti DK Series (Rated above 35hp) must use the PTO Link® Compact System as the only compatible option (this is the only tractor model above 35hp, that is not compatible with the HD System)
• *Exception List (Rated below 35hp tractor models): The “smaller” PTO Link® Compact System is the REQUIRED system for, but not limited to, the following tractor models: Kubota BX, B & LX Series, Kioti CS & DK Series(cat-1), Yanmar SA Series, John Deere 2520, New Holland Workmaster 25S, Cub Cadet 6284D, Bad Boy 3026, LS MT122 & 125, Mahindra 1526 & 1626 and Massey Ferguson 1010, 1020, 1030 & 1035, therefore, the above listed models are not compatible with this “larger” HD System.

Product Features:

• PTO Link® HD System - Safety Plunger Pin (SLIC Pin) included with every Tractor Coupler – Extras can be purchased separately.
• Simple one-step installation and easy removal for each coupler without special hardware or installation tools.
• Built to last (Modified AISI 4140 hardened alloy steel with QPQ finish)
• Limited warranty covers all manufacturing defects in materials or workmanship of all PTO Link® parts for one year from the date of purchase.
• US Patents 10,718,383 & 11,313,417
• International Patents Pending
• Dimensions: 4.75” W x 3.875” H
• Weight: 4.8 lbs; Shipping weight: 5 lbs

Safety and Operation:

• The PTO Link® System adds approximately 5 inches to the overall length of the implement driveline when fully installed. To avoid any possible damage or injury requires carefully measuring the driveline length for possible adjustments and reviewing all installation instructions and operational specs before operating the PTO Link®.
• The PTO Link® HD System is NOT compatible or interchangeable with other PTO Link® systems due to the specific design of the connecting components for each system.
• As an essential safety precaution, be sure to turn off the tractor’s engine during installation, shield any rotating parts, and do not wear any loose clothing that could become entangled and pulled into the machine. PTO safety is critical, and every precaution should be taken.
• The PTO Link® system is NOT an adapter. To comply with ASABE standards, do not use PTO Link® in combination with PTO adapters.

PTO Link® Compact System for ONLY category 1 tractors (compact or subcompact, with a max of 70 HP/engine net
raJng), used in combinaJon with Category 1 implements ONLY.
